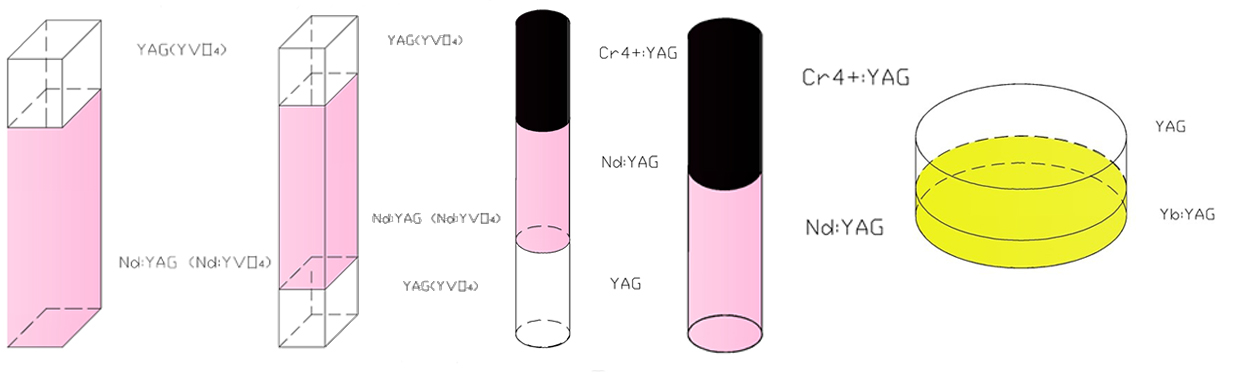

Bonding (Diffusion bonded) crystals consist of one laser crystal and one or two undoped material. They are combined by optical contact method and further bonded under high temperature. Diffusion Bonded Crystal helps to decrease thermal lens effect considerably.
| Material | Doping concentration(atm) or Optical Density(cm-1) | Aperture (mm) | Length of laser crystal(mm) |
|
YVO4+ Nd:YVO4 + YVO4
|
0.1%-3%
|
1×1-20×20
|
0.15-30
|
|
Φ2-15
|
|||
|
YAG+Nd:YAG+ YAG
|
0.1%-2.5%
|
1×1-20×20
|
0.125-200
|
|
Φ2-15
|
|||
|
YAG+Nd:YAG+Cr4+:YAG
|
0.1%-2.5% / 0.6~7
|
1×1-20×20
|
0.125-200
|
|
Φ2-15
|
|||
|
YAG+Nd:Ce:YAG+ Cr4+:YAG
|
0.6~7
|
1×1-20×20
|
0.125-200
|
|
Φ2-10
|
|||
|
YAG+Yb:YAG+ Cr4+:YAG
|
1%-45% / 0.6~7
|
1×1-20×20
|
0.125-200
|
|
Φ2-10
|
