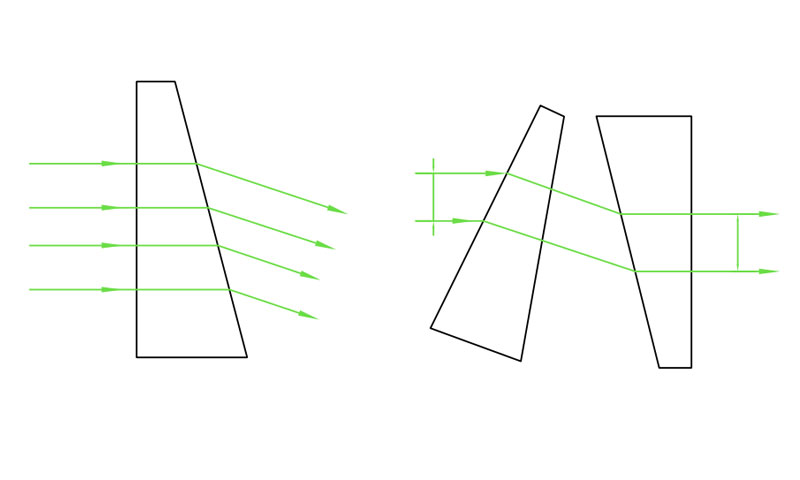

Wedge prism has two plane inclines. Usually these two faces are lean toward each other at a very small angle. Wedges divert light toward the thicker end. We can provide wedges with a diameter ranging smaller up to 2mm,
| Material: | optical glass,crystals YVO4,NdYAG, |
| Diameter Tolerance: | +0.0/-0.1mm |
| Thickness Tolerance: | +/-0.1mm |
| Surface Quality: | 20/10 |
| Flatness: | λ/4 @ 632.8nm |
| Wedge Angle: | +/-1 minute |
| AR coating: | 1064nm,1550nm |
Custom precison optics-infrared optics-coatings. Professional and trustable manufacturer From Prototype to volume production
