| Density： | 4.09g/cm^3 | |||
| Refraction Index： | 2.20084%@10μm | |||
| Reflection Loss： | 24.7%@10μm(2 surfaces) | |||
| Range of transmission： | 0.37-13.5μm | |||
| Size: | Dia10mm to 150mm |
| Tolerance: | +0/-0.1 |
| Surface Quality : | 40/20 or 20/10 precision |
| Flatness : | 1/4 lambda per inch @633nm, 1/8 lambda per inch @633nm |
| Parallelism : | < 3 arc min |
| Chamfer : | 0.25(+0.25/-0.00)mm × 45 Degree |

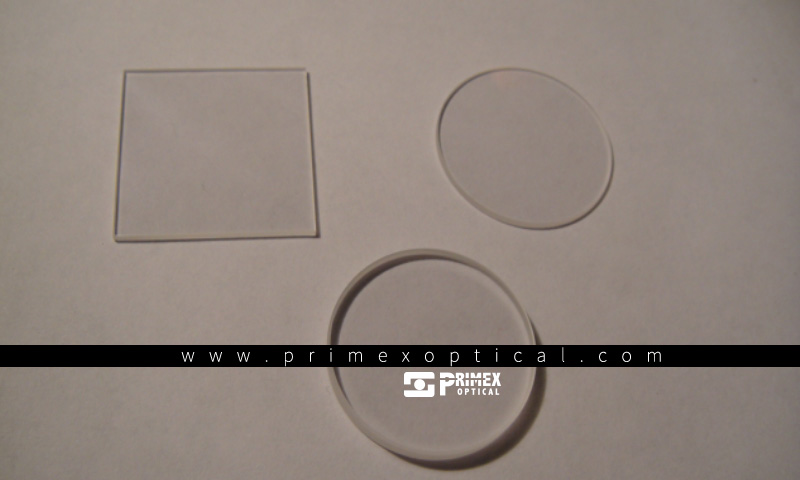

| Material : | Zns monocrystal |
Custom precison optics-infrared optics-coatings. Professional and trustable manufacturer From Prototype to volume production
